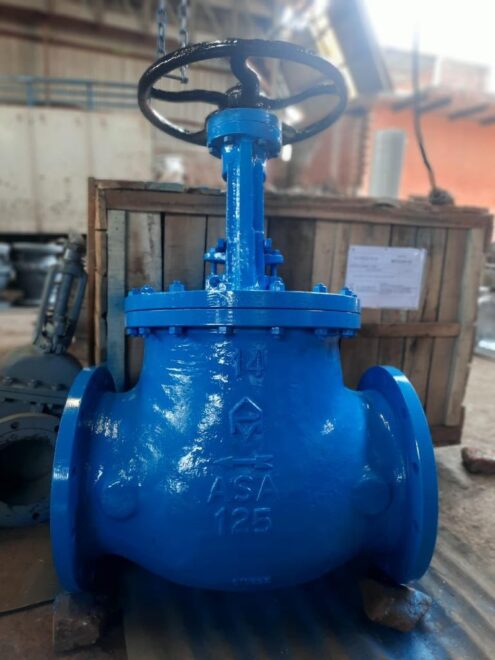

Din Globe Valve

Design and Manufacture : EN 558-1, BS 1873
Face to Face Dimension:DIN 3202
Flange Connection Dimension :EN 1092,DIN2543-2546
BW Connection Dimension: ASME B16.25
Pressure Temperature Rating :ASME B16.34
Test and Inspection :EN 12266, DIN 3230, EN 12569
Type of Operation :Manual,Gear,Electric,Pneumatic etc.
NPS :DN15~DN 600
Class :PN10 ~PN160
Main Materials :1.0619,1.4308,1.4408, Cast Iron, WCB WC6, WC9, C5, C12A, LCB,LCC, CF8, CF8M, CF3, CF3M, CF8C, CN7M. 4A, 5A,6A, CN7M, Monel,Inconel, HC276, etc.
